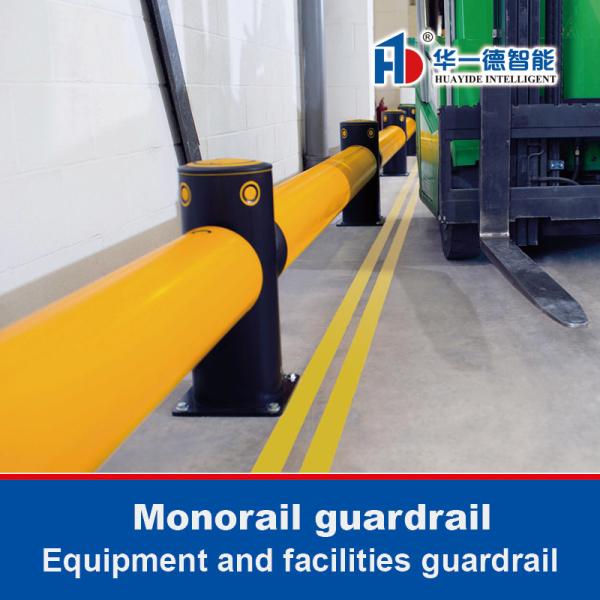

Monorail guardrail / Round tube guardrail
Equipment And Facilities Guardrail
Equipment facilities guardrail with large diameter crossbar, more focused on low-level protection, can block a variety of factory moving vehicles, to avoid collision, superior performance; to protect enterprise property and personnel safety;
Product Advantage
● The bright yellow color provides an excellent visual reference for vehicles and site personnel.
● Various combinations are available depending on the desired location.
Polymer material: energy-absorbing shell, the impact of the vehicle to play a role in mitigating and eliminating.
Round tube large diameter crossbar: durable and impact resistant
Hexagonal crossbar: internal reinforcement of structural tendons, secondary cushioning elasticity technology
Buffer: industrial rubber buffer built in the base, special bolt fixing.
Safety Barrier · Warehouse Storage Rack · Made In China
Absorbable impact energy
—
90 degrees between forklift and guardrail, impact of forklift tail on the middle of 1.5m beam.
● 7.1km/h for a 2064kg vehicle ● 3814 Joules
Safety Barrier · Warehouse Storage Rack · Made In China
Monorail guardrail:90mm crossbar
—
360° Total Protection / Unlimite Length / Free angle adjustment
Technical Specifications
| Model | HYD-GR-E-90 |
| Overall length | 1500mm |
| Column Diameter | 90mm |
| Cross-sectional dimensions of cross-bar | 60x40mm |
| Height | 260mm |
Safety Barrier · Warehouse Storage Rack · Made In China
Round tube guardrail:160mm crossbar
—
360° Total Protection / Unlimite Length / Free angle adjustment
Technical Specifications
| Model | HYD-GR-E-180 |
| Overall length | 2000mm |
| Column Diameter | 180mm |
| Cross-sectional dimensions of cross-bar | 180mm |
| Height | 510mm |
Safety Barrier · Warehouse Storage Rack · Made In China
CASE
—
Safety Barrier · Warehouse Storage Rack · Made In China
Safety Barrier · Warehouse Storage Rack · Made In China
Safety Barrier · Warehouse Storage Rack · Made In China
Safety Barrier · Warehouse Storage Rack · Made In China
Safety Barrier · Warehouse Storage Rack · Made In China
Packaging Details
Safety Barrier · Warehouse Storage Rack · Made In China
Anhui Huayide Intelligent Storage Equipment Co., Ltd. is a manufacturer in China specializing in the research, development and production of flexible anti-collision facilities. The company has its own material research and development center, testing laboratory, injection molding, blow molding, extrusion, thermo-synthesis production line, and has been supplying high quality products to a number of the world's top 500 companies continuously. Our products are in line with MUTCD, ASTM, CE, GB and other related standards, and we have a number of existing invention patents.
Our flexible anti-collision products have passed the TUV test and certification. This series of products include high-impact and high-energy-absorption crash barriers and guardrails, which have been widely used in airports, production areas, logistics warehouses and other fields. Flexible anti-collision series products can effectively protect operators and equipment assets, and at the same time reduce maintenance costs.
Huayide Intelligent has always been to innovate to achieve the product, to create a reputation for quality, for the user's safety escort. We look forward to working together with our partners.
| Our mission: to make work safer |
| In our work, a variety of safety accidents often occur. We are adhering to the staff can let all the staff can be more assured, safe work of the original intention, and constantly according to a variety of work scenarios to develop and continue to improve a variety of safety protection products. |
